Tips

Accessibility

Here follows an overview of what applies according to the EU standard EN 301 549 (as well as WCAG 2.1). Interested readers can start at page 45 (Chapter 9) of EN 301 549.

For general information, we refer to:
https://www.digg.se/webbriktlinjer/lagar-och-krav/det-har-ar-en-301-549-och-wcag

Typography

Font size, colors, and links.

Frame 1010101958

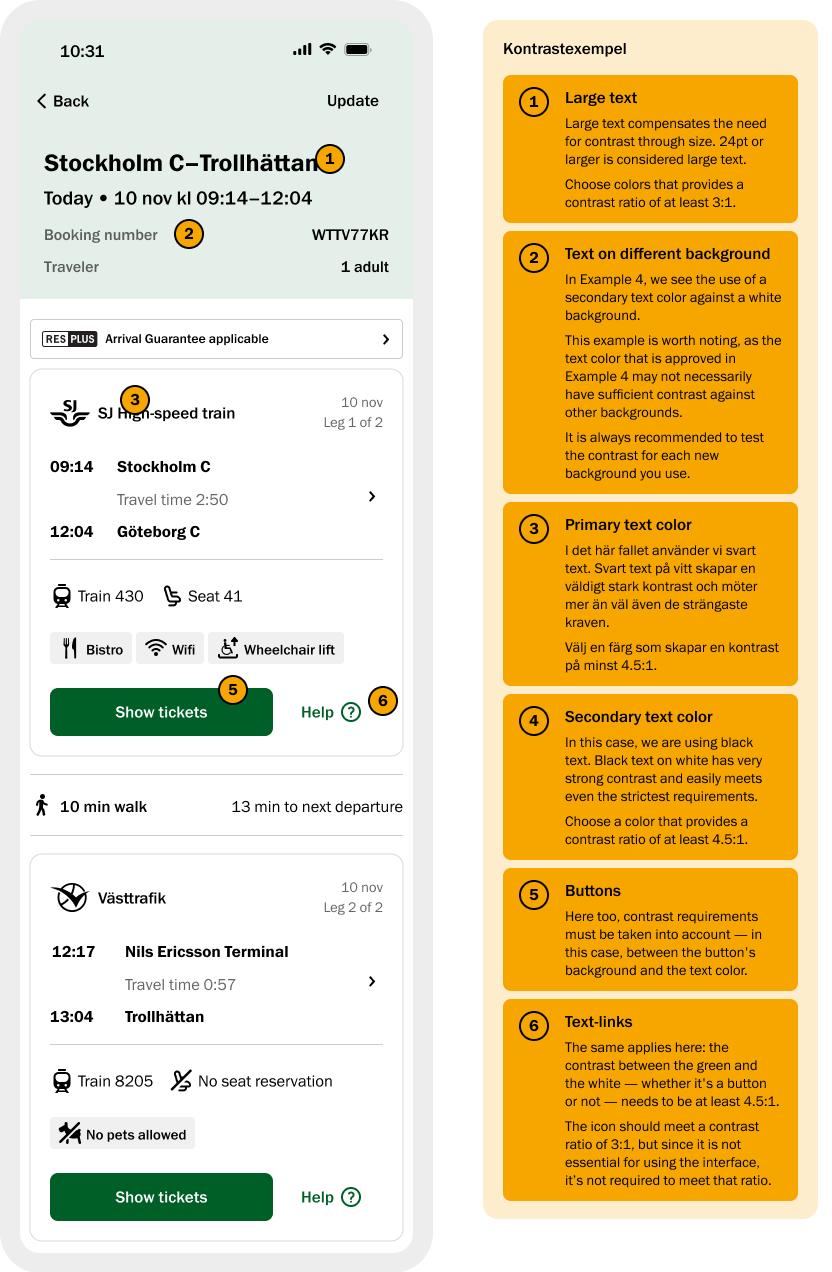

Text contrast should comply with WCAG 2.1 requirements
https://www.w3.org/TR/WCAG21/#contrast-minimum

https://www.w3.org/TR/WCAG21/#contrast-minimum

The visual presentation of text and images of text has a contrast ratio of at least 4.5:1, except for Large Text. Large-scale text and images of large-scale text [should] have a contrast ratio of at least 3:1;

Tips on tools for measuring contrast between two colors

https://snook.ca/technical/colour_contrast/colour.html

Accessibility requirement


Signaling urgency or importance using color alone can make it difficult for color blind to interpret the information correctly.

https://www.w3.org/TR/WCAG21/#use-of-color



Recommendation

Always use an icon to support visual communication of status, urgency and severity, not just a color alone. This ensures color blind perceive the message as intended.

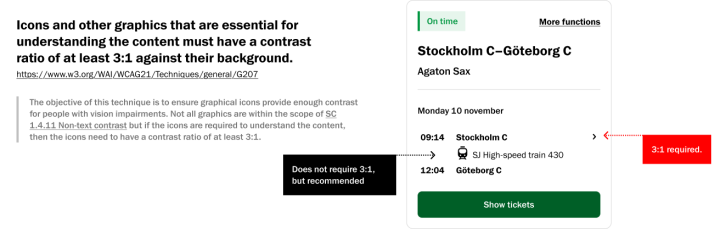

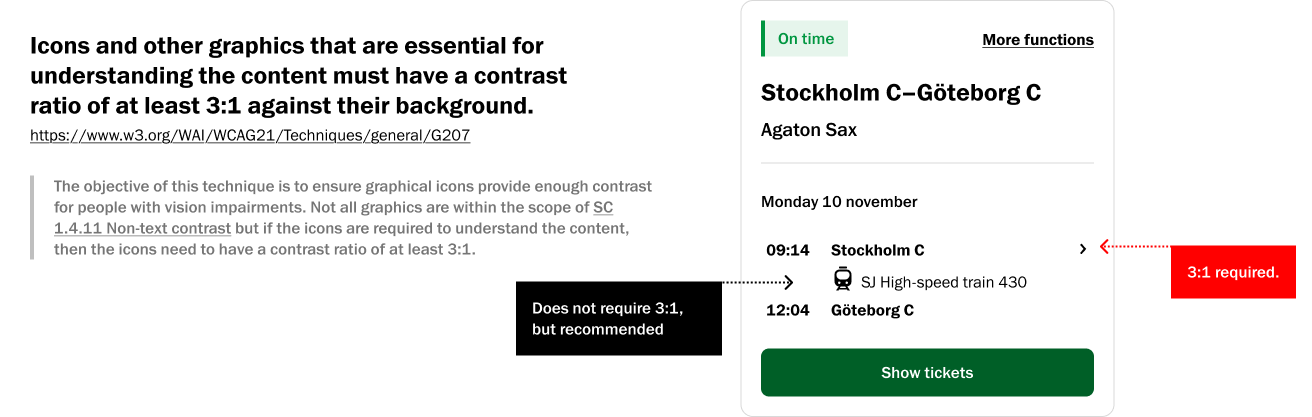

Icons

Scalable text

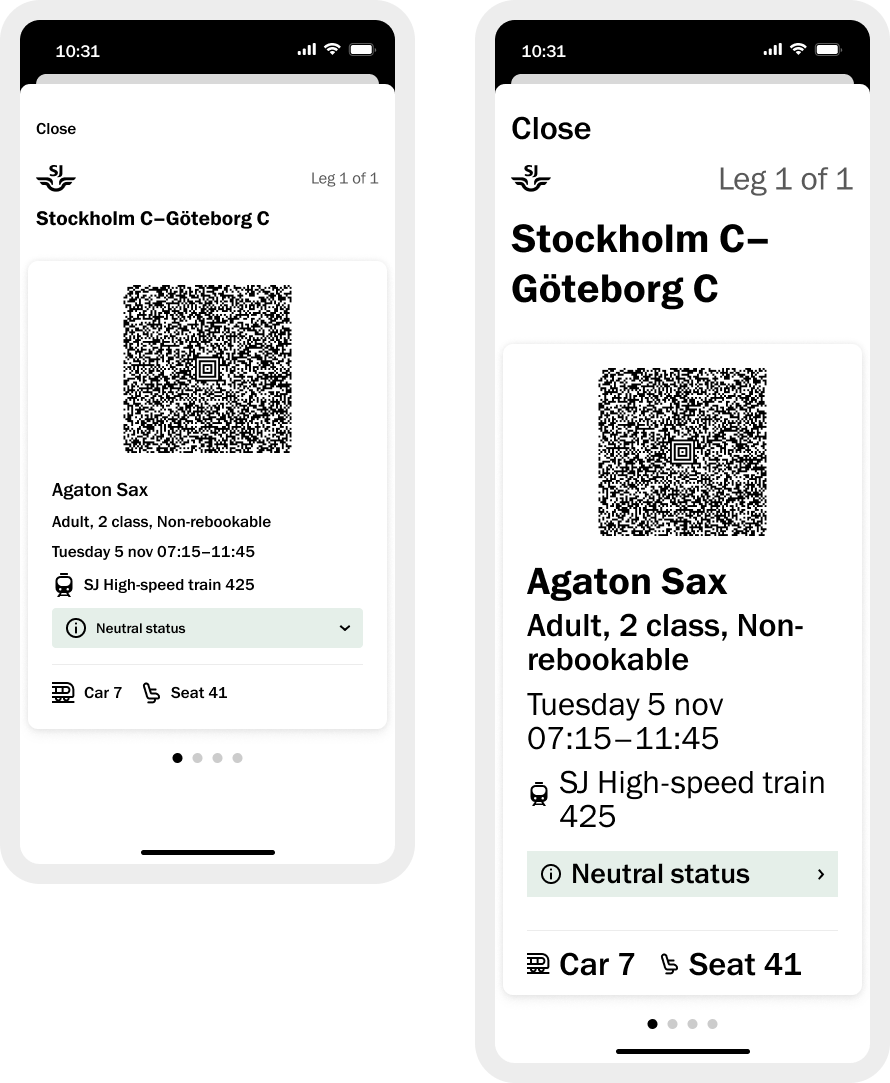

Example of a Ticket with text scaled up 200%


https://www.w3.org/TR/WCAG21/#visual-presentation

Frame 1010101960

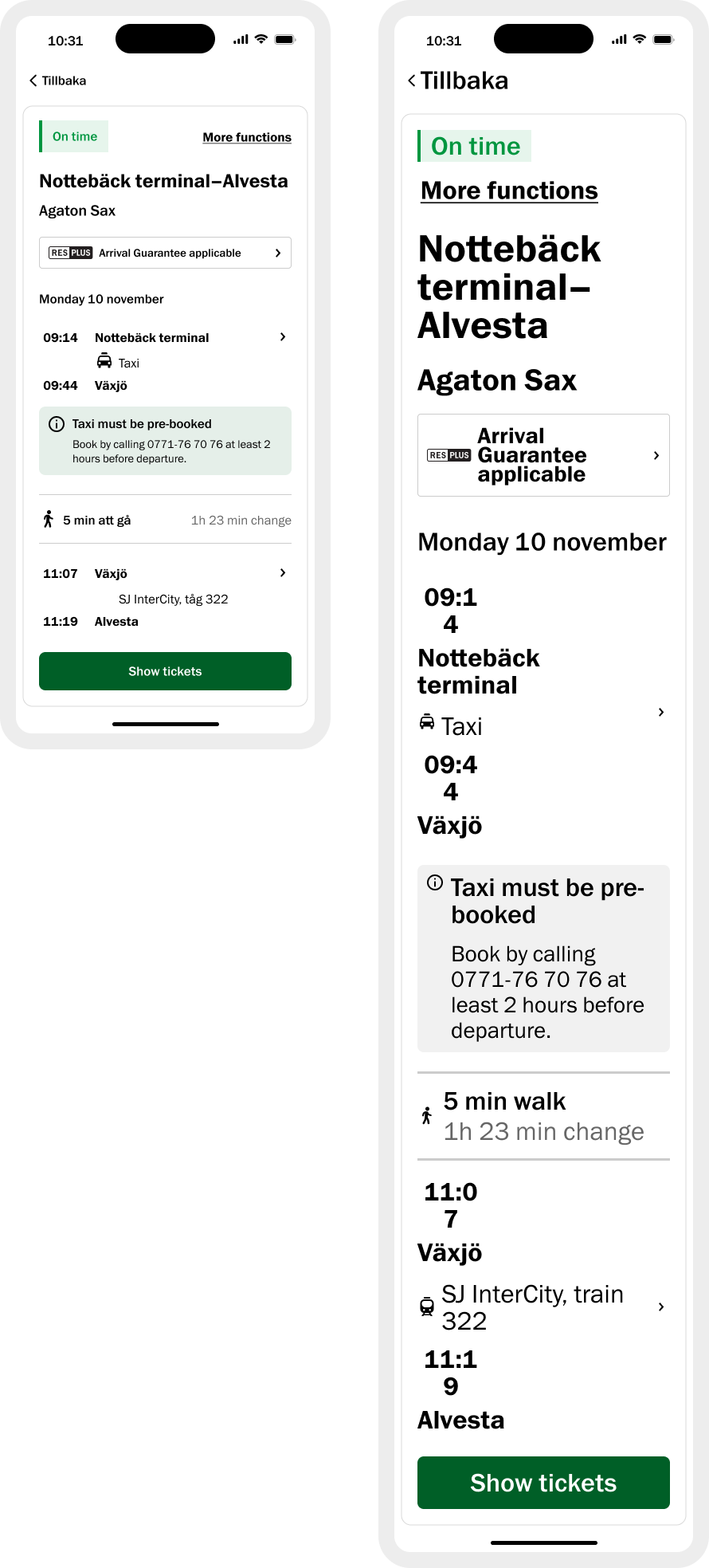

Example of a Travel plan with text scaled up 200%


https://www.w3.org/TR/WCAG21/#visual-presentation

Frame 1010101961
Group 1581
Frame 1010101819

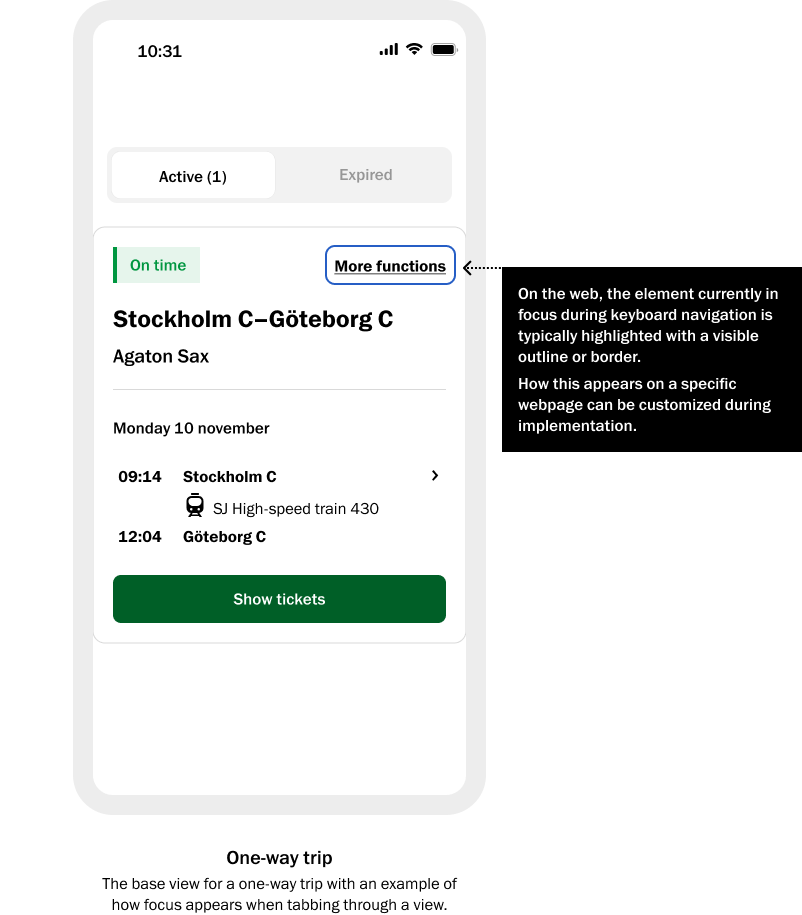

Keyboard navigation: order of content

https://www.w3.org/WAI/WCAG21/Understanding/focus-order.html

What it is?
In the same way a screen reader determines a meaningful reading order, a user navigating via keyboard must be given a meaningful presentation order of the content.

How it works?
When navigating with a keyboard, the user uses the Tab key (or Shift + Tab to go backwards) to move through the content in its visual/presentational order. To make a selection, the user presses Enter.

Technical documentation
https://www.w3.org/WAI/WCAG21/Techniques/css/C27
https://developer.mozilla.org/en-US/docs/Web/HTML/Global_attributes/tabindex
When implementing on the web, the “tabindex” attribute can be used to control the presentation order during tabbing.

Frame 1010101962

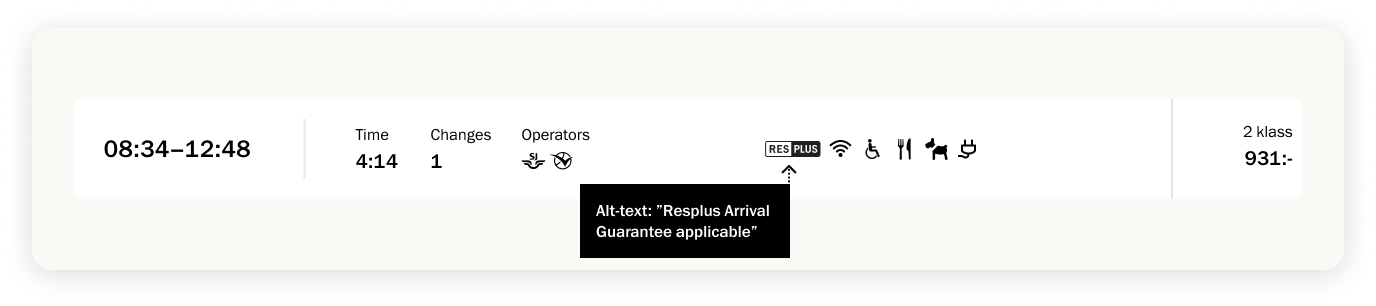

Alt texts for pictograms, logos, and images

The Resplus logo should be implemented with alt text that can be interpreted by a screen reader. Alt texts are also displayed when an pictogram, logo or image cannot be loaded.

See more here:

www.w3.org/WAI/WCAG22/quickref/?versions=2.0#qr-text-equiv-all

axesslab.com/alt-texts
